  • Sight Glass

    SEALMECH Tubular Type Sight Flow Indicators are Bi-Directional and may be placed in any orientation and so easy to check flow from any side of Sight Flow Indicator. They can be installed vertically or horizontally in the middle of any kind of non-transparent pipeline and are very convenient to observe the flow.

    SEALMECH offers a sight flow indicators suitable for rugged industrial applications. Sight Flow Indicators provide a quick, reliable and economical way to verify the flow & quality of fluids through industrial process lines. Tubular type Sight Glass is suitable for corrosive chemicals, acids and colored liquids.

    Sight Glass are used primarily in processes, where spot indication is desired to detect presence of media, or to inspect color, clarity, turbidity, or other critical characteristics.

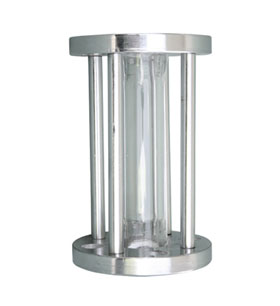

    Tubular Type Sight Glass
    • 3600 All Around View
    • Heavy Duty Construction
    • Pressure Up To Max. 10 bar
    • Suitable Up to 1250 C. Temperature
    • Simple & Easy To Replace The Glass
    • Flanged End Connection
    • Drilling as per ANSI B 16.5 / BS 10 / PN / DIN Std.
    • Sizes from 15MM To 200MM
    • M.O.C.: Cast Steel / S.S. 304 / 316 / 304L / 316L
    • Gasket: P.T.F.E. / CAF
    • Tempered Borosilicate Glass


    Sight Glass Tubular Type & Double Window Sight Glass, High Pressure Sight Glass Manufacturer in India 15mm to 200mm Size (0.5 inch to 8 inch) ANSI & DIN Standard Cast Steel, Stainless Steel Sight Glass
